afr aluminium cylinder head, 20° sb ford windsor, 185cc, street heads, 72cc chambers, stud mount, assembled, pair
More Images
Seller's Description

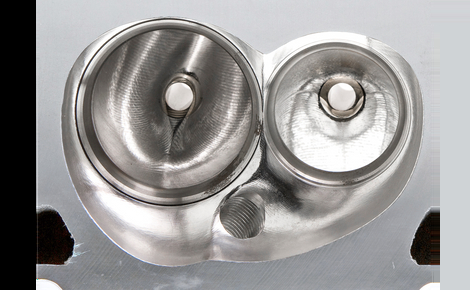

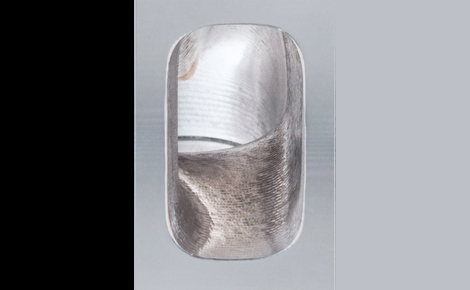

AFR's 185cc "Street" cylinder heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for engines from 302-393 cubic inches, operating up to 6000-6500 RPM. Part #1422 & 1492 are street legal in 50 states for 1995 and older emissions controlled vehicles under CARB EO #D-250-3. Not compatible with OEM pistons. AFR heads are available bare (without parts), call our tech line for details.
185cc Aluminum SBF Cylinder Heads | ||
---|---|---|
Part # | Rocker Type | Combustion Chamber |
1422 | Stud Mount - Emissions Legal | 58cc |
1492 | Pedestal Mount - Emissions Legal | 58cc |
1388 | Stud Mount - Non-Emissions Legal | 58cc |
1420 | Stud Mount - Non-Emissions Legal with EGR | 72cc |
1387 | Stud Mount - Non-Emissions Legal No EGR | 72cc |
185cc Street Head Flow Chart | ||||||
.200 | .300 | .400 | .500 | .550 | .600 | |
Int | 142 | 195 | 247 | 276 | 285 | 289 |
Exh | 118 | 164 | 200 | 210 | 213 | 215 |
$4,400.00 Purchase directly from our trusted partner VPW. Buy Now on VPW
Advertisement
Enquire about this part
Ad Id | JPFD5098553 |
Stock | AFR-1420 |
