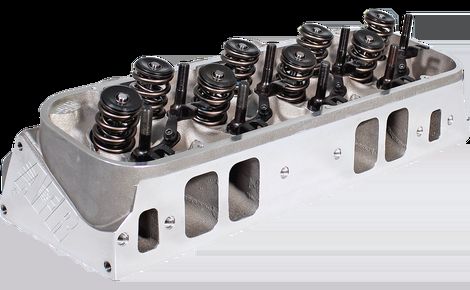

afr cylinder head, 24° bbc 325cc partially cnc ported, 117cc chambers, race ready, assembled, pair
More Images
Seller's Description
AFR’s 325cc heads are designed feature partially CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for more aggressive street, or street/strip builds with displacements up to 540 cubic inches, operating up to 6800 RPM. Also available with 100% CNC chambers for increased air flow. AFR heads are available bare (without parts), call our tech line for details.
325cc Aluminum BBC Cylinder Heads | ||
---|---|---|
Part # | Description | Combustion Chamber |
2101 | CNC Bowl Blend & Partial CNC Chamber | 117cc |
2101-1 | CNC Bowl Blend & Fully CNC Chamber | 121cc |
325cc As Cast Flow Chart | ||||||
.200 | .300 | .400 | .500 | .600 | .700 | |
Int | 148 | 217 | 274 | 316 | 346 | 366 |
Exh | 129 | 182 | 221 | 249 | 257 | 262 |
325cc w/ 100% CNC Chamber Flow Chart | ||||||
.200 | .300 | .400 | .500 | .600 | .700 | |
Int | 155 | 227 | 281 | 319 | 346 | 368 |
Exh | 135 | 195 | 240 | 254 | 262 | 266 |
$5,523.14 Purchase directly from our trusted partner VPW. Buy Now on VPW
