Crankshaft: Forged Steel Crank - 3.750" Stroke and 5.700" Rods
DETAILED INFORMATION
Description
HP & Torque: 432 HP / 450 FT LBS
Compression Ratio: 9.5:1
Forged Pistons
Forged Crank

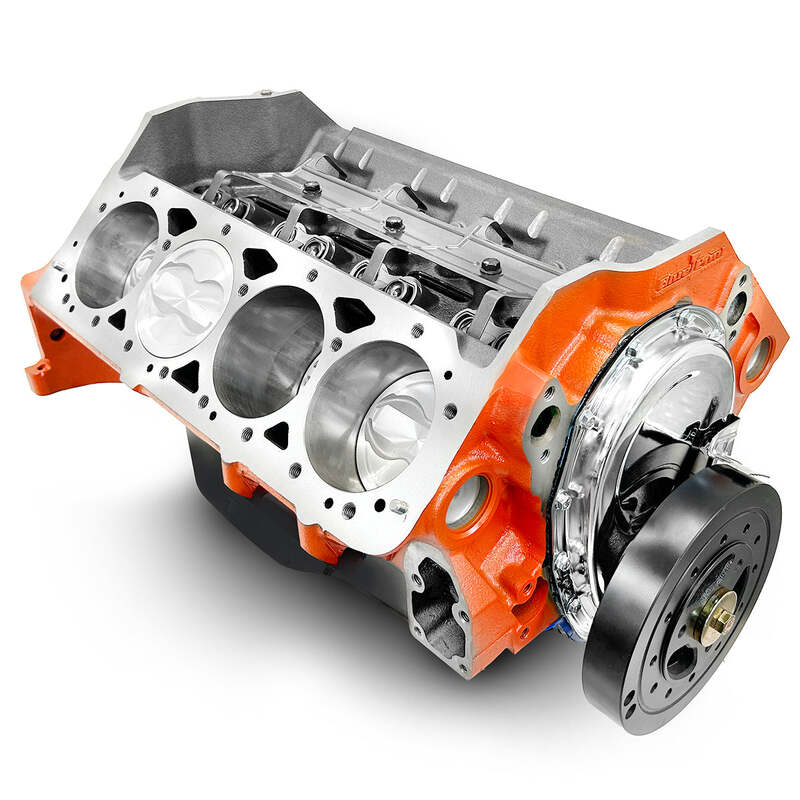

Block:
4 Bolt main
1 piece rear main seal.
4.00" bore
Passenger side dipstick
Align honed main bearing bore
Cylinders honed on computer-controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
Rotating Assembly:
New forged crankshaft, 3.75" stroke
Forged pistons, 18CC Dish
Forged rods with 150,000 PSI bolts
High volume oil pump
Hydraulic roller cam
Heavy duty double roller timing set
Harmonic balancer
Cam Specs w 1.5 Rocker Ratio:
Cam Type: Hyd Roller
.495 Intake .502 Exhaust
220 Intake / 224 Exhaust duration
@ .050 - 114 degree lobe separation
Ignition Timing:
34 degrees total (at 3500 RPM)
Also Includes:
Oil pan and timing cover
Engine Accessory Specifications
BluePrint Engines recommends the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Fuel Delivery Type: Carbureted 750CFM +, pending cylinder head choice
Spark Plug: Cylinder head specific
Harmonic Balancer: BPP350 - Non Weighted, 8" diameter
Flexplate/Flywheel: Weighted, 1 pc RMS
Stall Converter: 2400+
Intake Manifold: N/A
Fuel Recommendation: 91 Octane or higher, pending cylinder head choice
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
Firing Order: 1,8,4,3,6,5,7,2
Total Oil capacity with production oil pan, and Correct BPP51061 Filter : 5 Quarts
