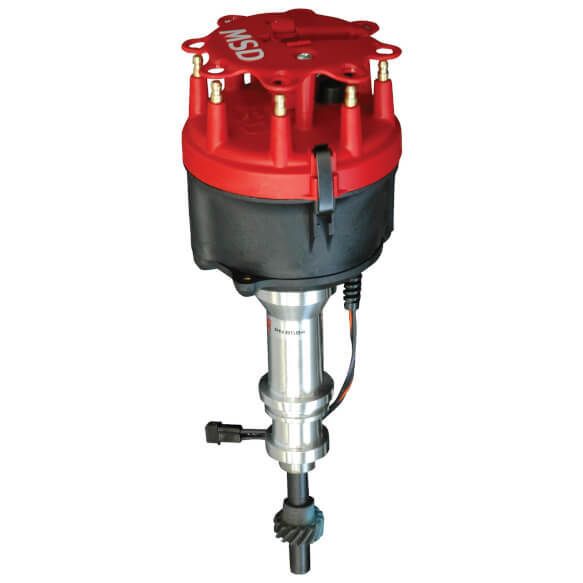

For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from Chromoly Steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned. The adjustable mechanical advance assembly allows you to accurately and easily modify the advance curve to match your specific application. The steel shaft that spins the advance and reluctor receives a friction-reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race-proven, maintenance-free magnetic pick-up. MSD premium distributors come complete with a race rotor and alkyd cap.Features:
CNC machined billet aluminum housing and Dupont Rynite base
Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
Must be used with an MSD Ignition Control
Mechanical advance assembly can be locked out for crank trigger systems
Nylon pads ensure smooth operation of the advance weights
Advance weight pins are staked and tig welded to the plate
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Polished steel shaft is QPQ coated and guided by a sealed ball bearing
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Easy-to-adjust mechanical advance with supplied springs and stop bushings
No CARB Exemption Order Number
