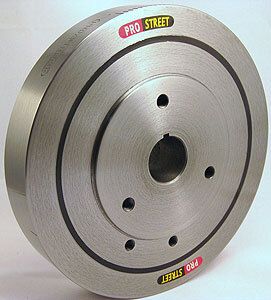

pro race harmonic damper,/balancer pro-sport, 6.61" diameter int balance, sb chevrolet v8, 283-350, each

PRO/STREET Harmonic dampers SB Chev Internal Balance

Dimensions . 8 x 1.47 x 2.33

PERFORMANCE

While PRO/STREET harmonic dampers are not intended for racing, the fact they are cast of nodular iron, as opposed to regular gray iron, means they are suitable for higher RPMs than most competitive models. Note: The PRO/STREET nodular iron harmonic dampers are NOT SFI certified.

DESIGN

PRO/STREET harmonic dampers are machined to tolerances far exceeding those used by OEs. This provides great fitment around the bore and oil seal, and a great surface finish.

BONDED ELASTOMER

Unlike many OE dampers, or other replacement style dampers, the PRO/STREET range feature a bonded elastomer! The elastomer is injected at high temperature and under extreme pressure. In fact during the manufacturing process EACH AND EVERY PRO/STREET damper is subjected to elastomer bond test of 3000lbs separation force. If there is any sign of bond degradation then the damper is scrapped. Many OE dampers are not bonded at all.

NODULAR IRON

Nodular iron, also referred to as ductile iron, is typically the material used for heavy duty applications of cast iron products. It is approximately 30% stronger than regular gray iron. So it was only natural that when PRO/RACE developed the heavy duty OE replacement PRO/STREET dampers, high strength nodular iron was the material of choice.

REMOVABLE COUNTERWEIGHTS

Harmonic dampers are supplied in two styles; those for internally balanced engines and those for externally balanced engines. Externally balanced engines have a counterweight bolted into the hub of the damper. The advantage of having a removable counterweight in the hub eliminates the possibility of having the counterweight mass move from its position plus it provides an extremely accurate external balance mass.

The PRO/STREET Damper for internally and externally balanced small block and big block Chevys and for small block Chryslers is identical except for the counterweight. This means, for example, if you have a PRO/STREET Damper for a 400 small block Chevy you can remove the counterweight and the damper will work perfectly for a 350 Chevy. Conversely, if you have a 350 Damper and want to use it on a 400 you can now purchase the proper PRO/RACE counterweight and bolt it into your 350 damper and it is now a 400 damper.

All Ford dampers are externally balanced with a counterweight. This counterweight can be removed for use on internally balanced engines.

MACHINED TO TOLERANCES EXCEEDING OEM SPECIFICATIONS!

The PRO/STREET dampers have been machined to tolerances far exceeding those used by OEM’s. Just take a look at the overall surface finish and oil seal and bore of the damper! Permanent rolled-in timing marks are very visible and will never fade or become less visible!

BRAND NAME YOU CAN TRUST

These dampers are from PRO/RACE Performance, a leading manufacturer of racing SFI-Spec. dampers, so you know they are a high quality, yet affordable, damper for heavy duty street or replacement applications. Note: Externally balanced models are supplied with the necessary counterweights. Counterweights are also sold separately.

Feature's

• Nodular iron construction – over 30% stronger than gray iron.

• Bonded Elastomer – outer ring and inner hub are bonded (vulcanized) to the elastomer.

• Removable counterweights – externally balanced models feature bolt-in counterweights, making it easy to switch from an externally balanced engine to a internally balanced engine.

• 60 degrees of permanent easy to read timing marks (40 degrees on SB Ford models).
