davies craig electric fan, thermatic , 9 in. dia, 591 cfm, 6.5a (12v), each

More Images

Seller's Description

9" THERMATIC^® Electric FAN (24 VOLT) (PART #0161)

All Davies Craig Thermatic^® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet) and are available with a Brushed or Long Life Brushless Motor.

Thermatic^® Electric Fans are suitable for use as:

Radiator cooling fans

Air conditioner condenser Fans

Transmission and engine Oil cooler fans

It provides, constant or variable air flow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.

These fan assemblies are set up for upstream / pusher applications from the factory.

For downstream applications, the fan blade must be removed and turned over and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.

SPECIFICATIONS		COMPONENTS
Airflow	591 CFM (ft3/min)	Units	DESCRIPTION
Maximum current	6.5A (12 Volt) 3.25A (24 Volt)	1	9" Thermatic® Electric Fan (24 VOLT)
Weight	0.93 kg (2 lb)	4	Mounting feet

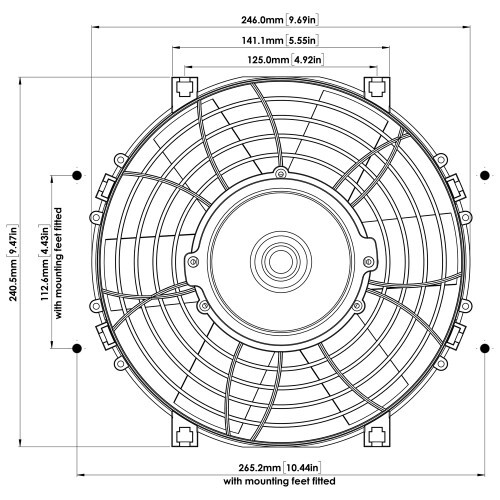

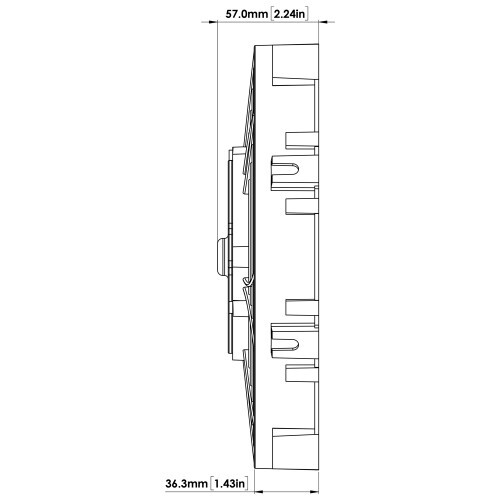

Dimensions	Height = 242mm Width = 250mm Depth = 55mm	4	Mounting feet

UNIVERSAL FAN FITTING KIT

(sold separately)

The Davies, Craig Universal Fan Fitting Kit includes all parts necessary for mounting and wiring any 12- and 24-volt electric fans

– all Davies, Craig Thermatic^® Fans and other electric fan models.

If using Parts #1000, #1001, #1002 or #1003 use the provided hardware to mount the fan to the core as per the instructions provided. Otherwise,

Quick Fit Kit Part #0579 or Mounting Hardware Part #0578

BRUSHLESS THERMATIC^® FAN MOTOR CONTROL INTERFACE

The Brushless Thermatic^® fan has 9 different control modes for flexible and smart motor control. For optimal control, Davies, Craig recommends the use of a Thermatic^® Fan Switch.

Davies, Craig has a full range of Thermatic^® Fan Switches are available in both mechanical (#0401, #0404 & #0400) and Digital Thermatic^® Fan Switches (#0444, #0445, #0448, #0435, #0438 & #0500). (Sold separately)

https://daviescraig.com.au/category/switches-fan-controllers-ewp

THERMATIC^®/ ELECTRIC FAN RANGE

Thermatic^® / Electric Fan Size	Part #		Airflow		Max Current	Weight	Height (mm)	Width (mm)	Depth (mm)
Thermatic^® / Electric Fan Size	12V	24V	12V	24V	Max Current	Weight	Height (mm)	Width (mm)	Depth (mm)
8” Thermatic^® Electric Fan	0135	0136	400 CFM 680 m3/h	400 CFM 680 m3/h	5A (12V) 2.4A (24V)	0.88 kg 1.9 lb	211	213	56
*Brushless 8” Thermatic^®* *Electric Fan*	*0121*	*0122*	450 CFM 765 m3/h	470 CFM 799 m3/h	7A (12V) 5A (24V)	1.27 kg 2.8 lb	211	213	66
9” Thermatic^® Electric Fan	0160	0161	591 CFM 1004 m3/h	591 CFM 1004 m3/h	6.5A (12V) 3.25 (24V)	0.93 kg 2 lb	242	246	55
Brushless 9” Thermatic^® Electric Fan	*0123*	*0124*	788 CFM 1340 m3/h	850 CFM 1444 m3/h	11A (12V) 9A (24V)	1.33 kg 2.9 lb	242	246	68
10” Thermatic^® Electric Fan	0145	0146	693 CFM 1177 m3/h	693 CFM 1177 m3/h	7A (12V) 3.5A (24V)	1.13 kg 2.5 lb	270	290	64
10” Slimline Thermatic^® Electric Fan	0147	0148	696 CFM 1183 m3/h	696 CFM 1183 m3/h	7A (12V) 3.5A (24V)	1.13 kg 2.5 lb	278	275	56
10" High Power Thermatic^® Electric Fan	0150	0151	1000 CFM 1699 m3/h	1000 CFM 1699 m3/h	19A (12V) 10A (24V)	1.5 kg 3.3 lb	278	275	84
Brushless 10" High Power Thermatic^® Electric Fan	*0125*	*0126*	1020 CFM 1736 m3/h	1075 CFM 1826 m3/h	15A (12V) 10A (24V)	1.4 kg 3 lb	278	275	66.5
12” Thermatic^® Electric Fan	0162	0163	847 CFM 1439 m3/h	847 CFM 1439 m3/h	9.0A (12V) 4.5A (24V)	1.45 kg 3.2 lb	293	293	58
12" High Power Thermatic^® Electric Fan	0155	0156	1250 CFM 2124 m3/h	1250 CFM 2124 m3/h	22A (12V) 12A (24V)	1.6 kg 3.5 lb	293	293	86
Brushless 12" High Power Thermatic^® Electric Fan	*0127*	*0128*	1295 CFM 2200 m3/h	1360 CFM 2311 m3/h	18A (12V) 10.5A (24V)	1.5 kg 3.3 lb	293	293	68.9
14” Slimline Thermatic^® Electric Fan	0164	0165	1021 CFM 1735 m3/h	1021 CFM 1735 m3/h	11.0A (12V) 5.5 (24V)	1.5 kg 3.3 lb	350	348	76
14” High Power Thermatic^® Electric Fan	0107	0108	1500 CFM 2549 m3/h	1500 CFM 2549 m3/h	13A (12V) 6.5 (24V)	2.5 kg 5.5 lb	350	348	94
16” Thermatic^® Electric Fan	0166	0172	2120 CFM 3602 m3/h	2120 CFM 3602 m3/h	19A (12V) 9.5 (24V)	3.0 kg 6.6 lb	400	424	97

What size Thermatic^® Fan do I need?

Davies Craig has made this process extremely easy –

A). Jump onto our website, https://daviescraig.com.au/fan-fitments

B). Click onto “Fan Selection Guide” in the grey banner on the top of home page. C). Place your vehicle make and model in the spaces provided or measure your radiator core dimensions (width, height and depth, (being the distance from the front of the engine to back of the radiator core).

The “Fan Selection Guide” will simply give you the appropriate fan options for your radiator to make a safe and correct choice.

If your car make is not listed in our Fan Selection Guide or the Model Selection Guide (see the Davies, Craig website, www.daviescraig.com.au/catalogues) we suggest the following:

Measure your radiator core dimensions (width, depth and clearance - refer diagram below) and refer to “Fan Models” to check which fan/s will fit your core.

Davies Craig Thermatic^®Fans are reversible which means they can be mounted upstream or downstream, as illustrated below.

In general, one large fan will have better airflow than two smaller fans. Where radiator is rectangular there may be no choice but to fit two smaller fans; choose the largest that can be accommodated in space available. The fan can also be mounted offset from centre to clear engine components when mounted in the downstream position.

Note: Fans should not be fitted on opposite sides of radiator core unless these are offset such that the airflow of one is not interfering with the airflow of the other.
