earls fluid transfer pumps, gear oil, 12 volt, 2.1 gpm, includes 2 -6an to 3/8 in. bspp adapter fittings, zinc plated, each

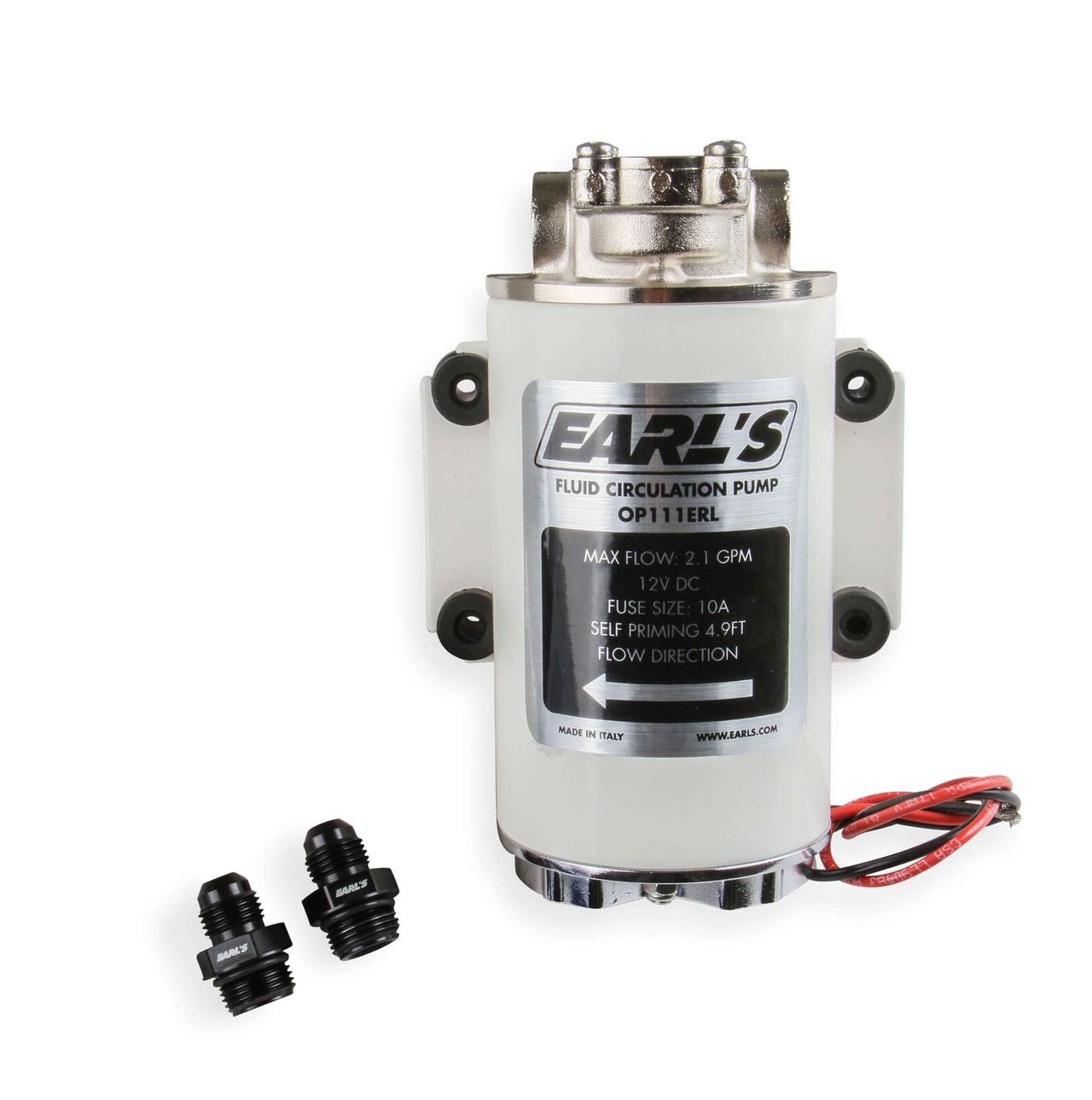

Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends.



Features:

• Electric Oil Pump


• Amp Draw: 10 Amps


• Flow Rate: Up to 2.1 GPM (7.9 LPM)


• Pressure: 72.5 PSI (5 Bar) Max


• Maximum Oil Weight: 90W Gear Oil


• Weight 5.5 lb (2.5 kg)


• Voltage: 12-Volt DC


• Brass Housing w/ Nickel Plated Finish


• Temperature Range: 14 to 160° F (-10 to 71° C) Continuous Duty; 265° (130° C) Max -Intermittent Use


• Overall Dimensions: 6-1/2” Tall x 4-5/8” Wide x 3-3/4 Deep


• Mounting Bolt Pattern: 4-Bolt w/ 2-1/4” Tall x 3-3/4” Wide


• Rubber Vibration Isolators on Each Mount


• Ideal for Cooling Manual Transmission or Differential Using External Oil Cooler


• Inlet & Outlet on Pump: 3/8 BSPP (British Standard Pipe Parallel) straight thread


• Includes (2) -6 AN Male to 3/8 BSPP Adapter Fittings


• Self-Priming – Up to 4 Ft. of Vertical Height


• Seal Material: FKM Rubber


• Use w/ Relay & Fuse (available separately)
