proflow transmission cooler kit, dual core, 15.75'' x 11.5'' x 5.0'', 10'' 650cfm fan, an6 inlets

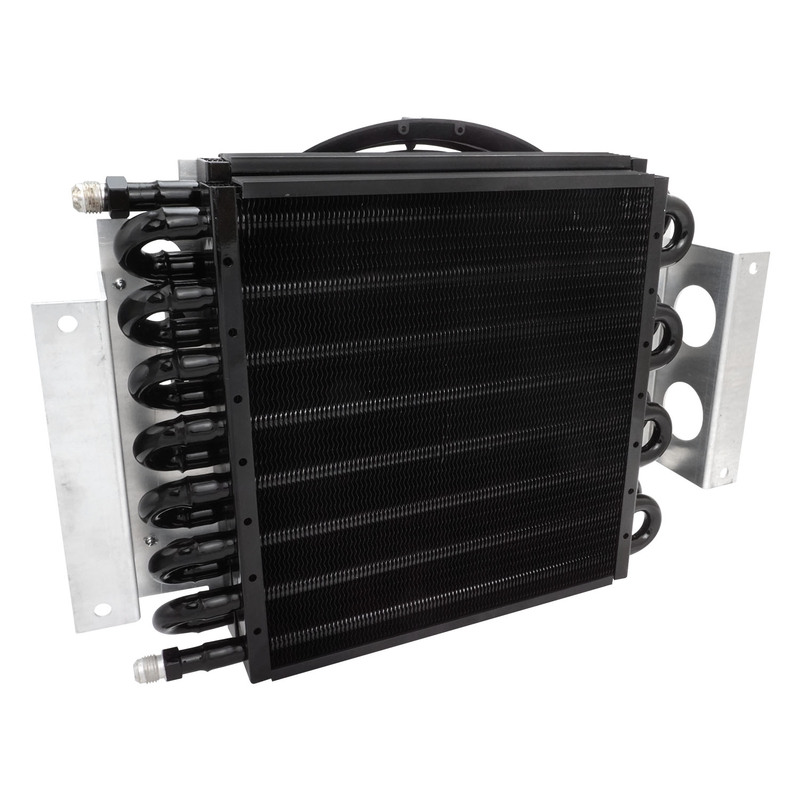

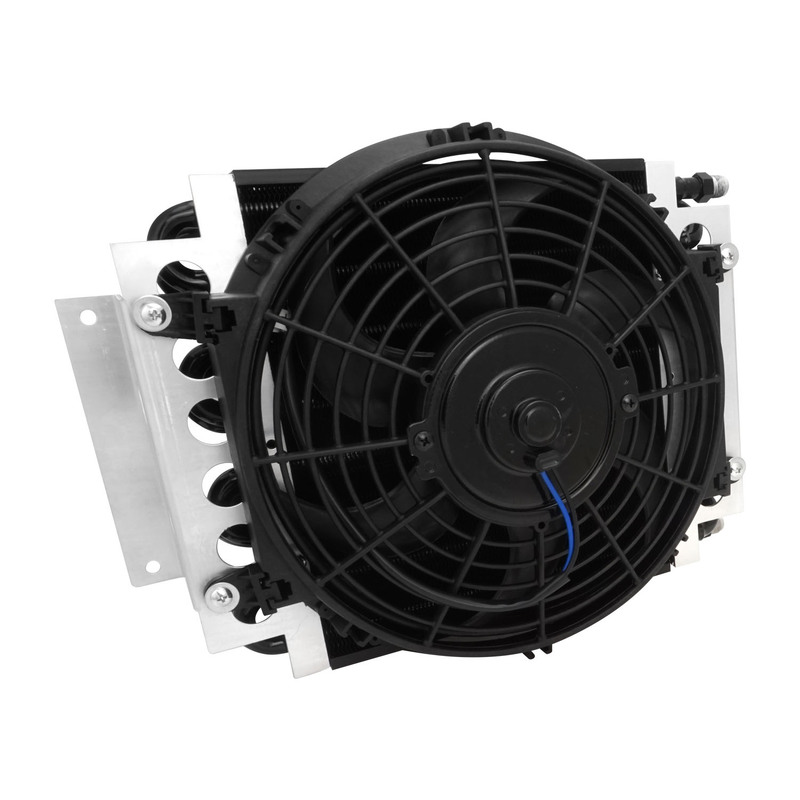

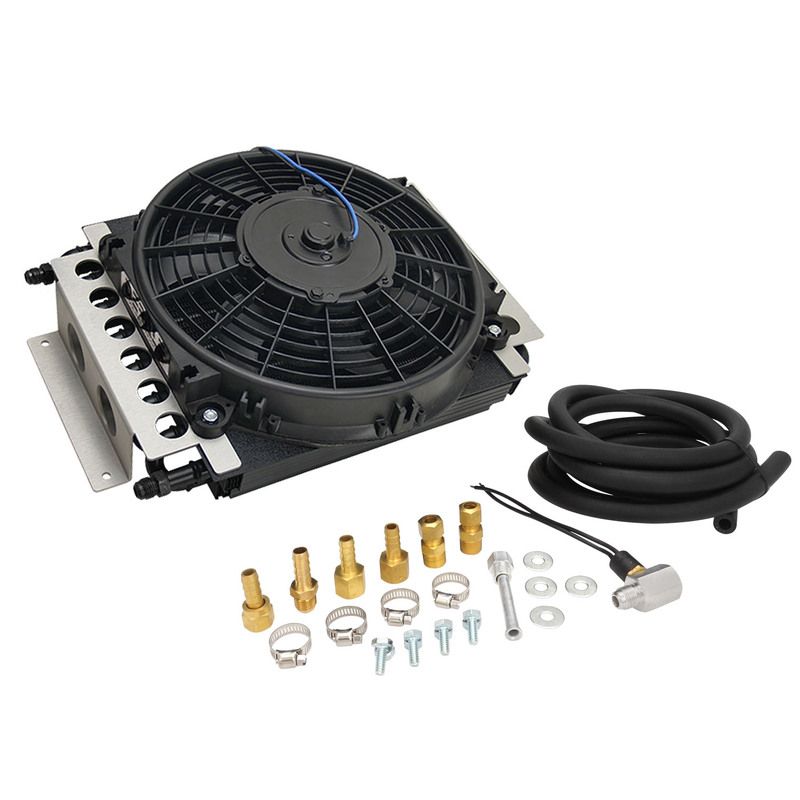

Proflow’s Ultra Cool dual core transmission oil cooler kit will help to increase your vehicle’s transmission life expectancy by significantly lowering operating temperatures. It has a large 38 mm thick powder coated dual core with an integrated mounting bracket and AN6 male connections. It also comes complete with a 650 CFM 10” curved-blade electric fan already mounted, so all you have to do is find a spot to mount it on your car! This kit also includes rubber hose, mounting accessories and a 74°C relay switch for activating the fan.

Features:

• 16 pass tube & fin core


• 650 CFM reversible electric fan (5.3 Amp current draw)


• Anodised aluminium shroud/bracket


• Can be mounted vertically or horizontally


• 250 PSI working pressure

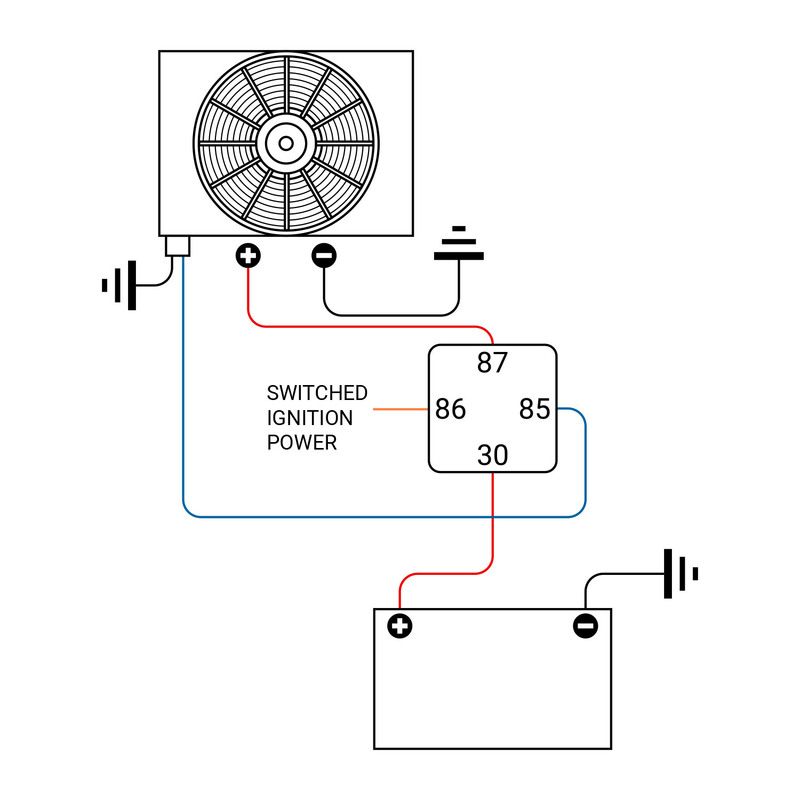

• Includes 74°C in-line thermostat for fan activation

Specifications:

• Inlet size: -06AN


• Fan size: 10"


• CFM: 650


• Amp draw: 5.3 A


• Width: 15-3/4"


• Height: 11-1/2"


• Depth: 5"


• Mounting: 14-3/4" x 5-1/4"


• Hose size: 3/8"


• Hose length: 10'
