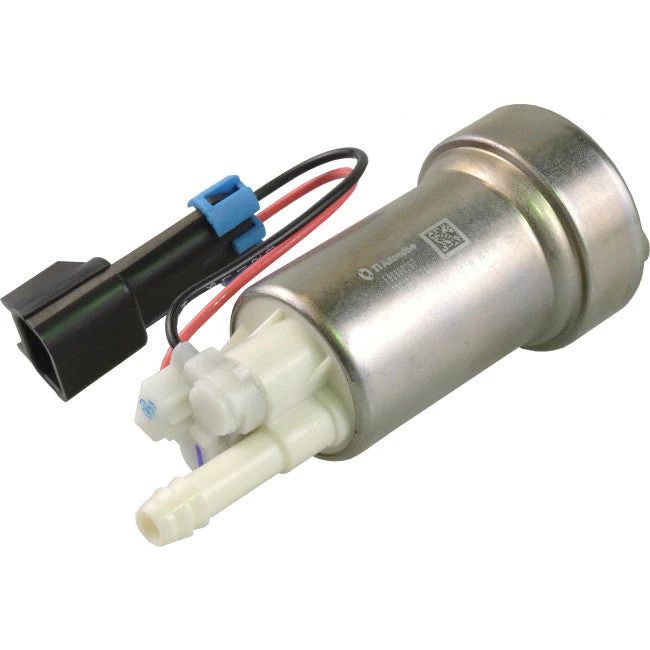

New DCSS 39/50 High-Performance Pump – F90000295: - Highest flow in-tank brushed fuel pump offering from TI Automotive / Walbro - No Internal check valve - ideal for racing applications to build oil pressure prior to start-up - Featuring award winning DCSS technology - E85 compatible - High-pressure relief setting - supports supercharger and turbo applications - Capable of supporting 900+HP at 60PSI naturally aspirated applications - Complete Pump and kit combination – TCD495 Fuel: GAS & E85 Horsepower: 900+ at 60PSI, naturally aspirated applications Over All Pump Length: 131mm Main Housing Diameter: 39mm Lower Housing Diameter: 50mm Fuel Inlet Diameter: 11mm OD Fuel Outlet Diameter: 11mm OD Flow Rate: 535LPH at 40psi Test Voltage: 13.5 Volts Note: Pump does NOT have a check valve NOTE: All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine. PETROL / GASOLINE E85 Naturally Aspirated 1072HP / 799KW Naturally Aspirated 800HP / 596KW Up To 1 Bar Boost 839HP / 626KW Up To 1 Bar Boost 615HP / 459KW 1 to 2 Bar Boost 775HP / 578KW 1 to 2 Bar Boost 548HP / 408KW Description Walbro / TI Automotive 535 / 540 lph High Pressure Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever. Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive. These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency that’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023 (also available in our other listings ). The Walbro 540lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps. Suits the following vehicles (along with many others) with minor cradle mods: BA, BF, FG, FG X Falcon & XR6 Turbo VT, VX, VY, VZ, VE, VF Commodore Subaru WRX Nissan Skyline, Silvia, 180sx and many more. Specifications Common names: Walbro 535, Walbro 540 High Pressure, Hellcat Flow rate: 540lph @ 13.5v (3 bar) E85 Compatible: Yes Max current draw: 25A (Make sure your wiring can handle this beast!) Body Diameter: 39mm / 50mm Length: 131mm Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm) Pressure Relief: 112psi (see other items for 112psi high pressure version) Check Valve: No (see other items for 525 Hellcat pump with check valve) Suits the following vehicles (along with many others) with minor cradle mods: BA, BF, FG, FG X Falcon & XR6 Turbo VT, VX, VY, VZ, VE, VF Commodore Subaru WRX Nissan Skyline, Silvia, 180sx and many more
